Item NO.:
DBJ-150Lead Time:
7-15daysProduct Orgin:
ChinaBrand:
SHIELDERShipping Port:
Guangzhou or ShenzhenPayment:
30% deposite, 70% balance before shippingColor:
Blue Black Yellow ect.PRODUCT DESCRIPTION

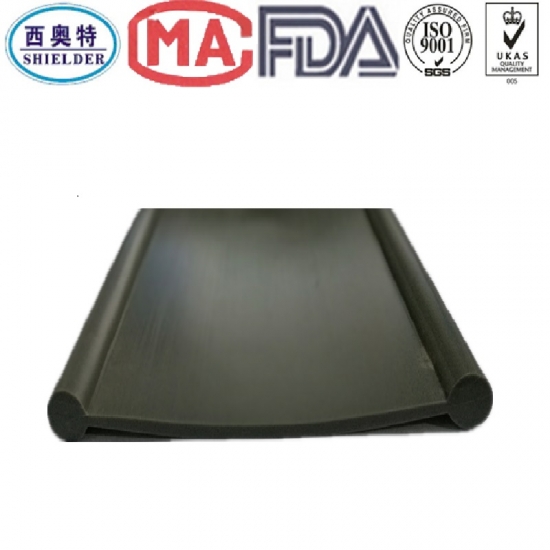

SHIELDER PVC waterstops are made from high quality polyvinyl chloride. To keep the good plasticity and stability, no reclaimed PVC is used.
Our PVC waterstops are extruded in different profile types, width and thickness according to the different type of joints, such as the expansion joint, construction joint.
ADVANTAGE
1. High tensile strength & ductility
2. Excellent inherent elasticity to withstand shear forces laterally or transversely in the joints

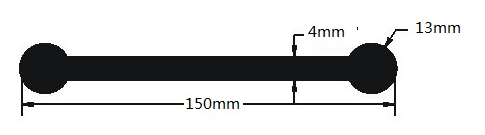

CROSS SECTION
APPLICATION
SHIELDER PVC waterstops are used in both water excluding & water retaining structures, such as:
1. sewage treatment tanks
PRODUCT FEATURES
Shape | Thermoplastic Extrusion Ribbon |
Color | Blue |
Hydrostatic Head | 10 meters in height |
Joint Displacement | 10mm in width |
Density | 1350kg/m3 |
Hardness | 78IRHD |
Tensile Strength | 15.7N/mm2 |
Softness | 52 |
Elongation at Break | 340% |
Water Absorption | 0.04%1 |
Toxicity | Non-toxic2 |
prev :
Reservoir PVC Water stop StripNext :
Dumbbell PVC WaterstopHave A Question? You Can Call Us Or Email Us By Sending A Message Below.
waterstop welding of heater blade
Use for construction joints and expansion jonts of sealed reinforced concrete,SHIELDER PVC waterstop strips shall be be placed in concrete t cross and cling to a gap,forming a sturdy and seamless impermeable barrier to prevent a liquid from flowing past,the product has a variety of different shapes,For example,its middle-setting or external-setting1
Use for construction joints and expansion jonts of sealed reinforced concrete,SHIELDER PVC waterstop strips shall be be placed in concrete t cross and cling to a gap,forming a sturdy and seamless impermeable barrier to prevent a liquid from flowing past,the product has a variety of different shapes,For example,its middle-setting or external-setting1
Use for construction joints and expansion jonts of sealed reinforced concrete,SHIELDER PVC waterstop strips shall be be placed in concrete t cross and cling to a gap,forming a sturdy and seamless impermeable barrier to prevent a liquid from flowing past,the product has a variety of different shapes,For example,its middle-setting or external-setting1
